Coats 50/60/70/80/90 X Series Tire Changers Clickable link text
Not sure what a part is called? Just check the number on the parts breakdown diagram then match it to the number on the list and click on the text. You will will be taken to that item where you can purchase it.

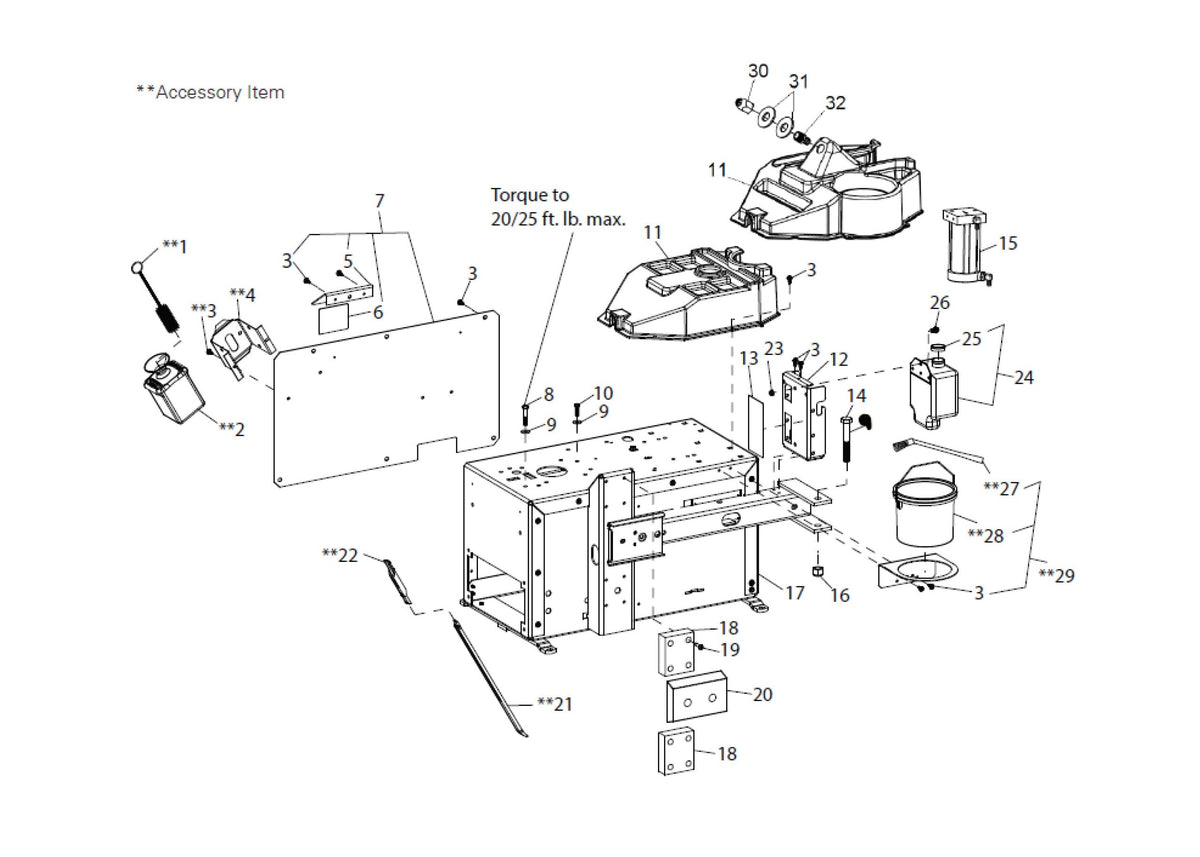

Chassis
1 Lube Applicator
2 Lube Bottle (Red)
3 1/4" Hex Hd Self Tap Screw
4 Lube Bottle Bracket
5 Inflation Pedal Cover
6 Inflation Pedal Decal
7 Metal Side Panel
8 M10-1.5 x 55MM Hex
9 3/8 Flat Washer, Zinc Plate
10 3/8-16 x 1-1/4 Hex Hd.
11 Plastic Accessory Tray
12 Lubricator Bracket
13 Lubrication Notice Decal
14 3/4 x 3-1/2 SHSHS Screw
15 Water Separator Assy
16 5/8-11 Hex Nut
17 Chassis
18 B.L. Pad, Front
19 5/16-18 x 1-1/4 TPHST Screw
20 B.L. Center Pad
21 Bead Lifting tool
22 Lift Tool Bootie Kit, Pkg of 10
23 312-18 Hex Flange Nut
24 Tank Reservoir w/Cap
25 Tank Reservoir Cap
26 5/16-18x5/8 HWHCS Screw
27 85000850 Tire Paste Brush
28 Universal Mounting Paste
29 Lube Bucket Bracket & Brush Kit
30 Inflation Nozzle Cone
31 Washer
32 3/4” Straight Fitting

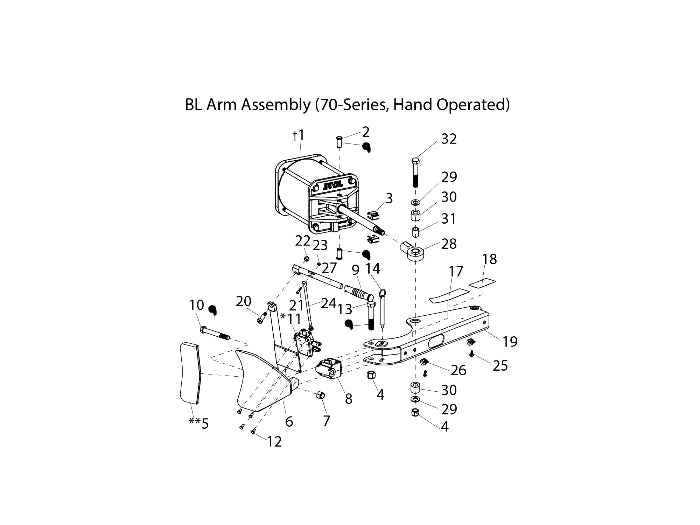

Bead Loosener Arm Assembly
1 BL fitting
2 Clevis Pin
3 Clevis Clip
4 Nylon Insert Lock Nut, Gr.5
5 Shoe Bootie Kit, Pkg of 2
6 B.L. Shoe, Handle & Pivot W/C
7 5/8-11 Nylon Insert Lock Nut Gr.5
8 Shoe Pivot Bracket
9 3/4", Rubber Hand Grip
10 5/8-11 x 5" Hex Hd Cap Scr, Gr.5
11 B.L. Arm Valve Assembly
12 1/4-20 x.504 HHCS
13 3/4-10 x 3 3/4" HHCS
14 ø1/2" Hitch Pin
15 B.L. Spring
16 Pivot Pin, B.L. Cylinder Rod
17 Bead Loosener Caution Decal
18 Bead Loosener Caution Decal
19 B.L. Arm
20 Shoulder Screw
21 10/24 x 1” HHCS Screw
22 3/8-16 Hex Nyloc Nut
23 10-24 Nylon Insert Lock Nut Gr.5
24 Lever Link
25 1/4” Hex Hd Self Tap Screw, Gr.5
26 Neoprene Cushion Clamp
27 B.L. Lever Assembly
28 Heim Joint
29 Washer
30 Spacer
31 Spacer
32 Screw
