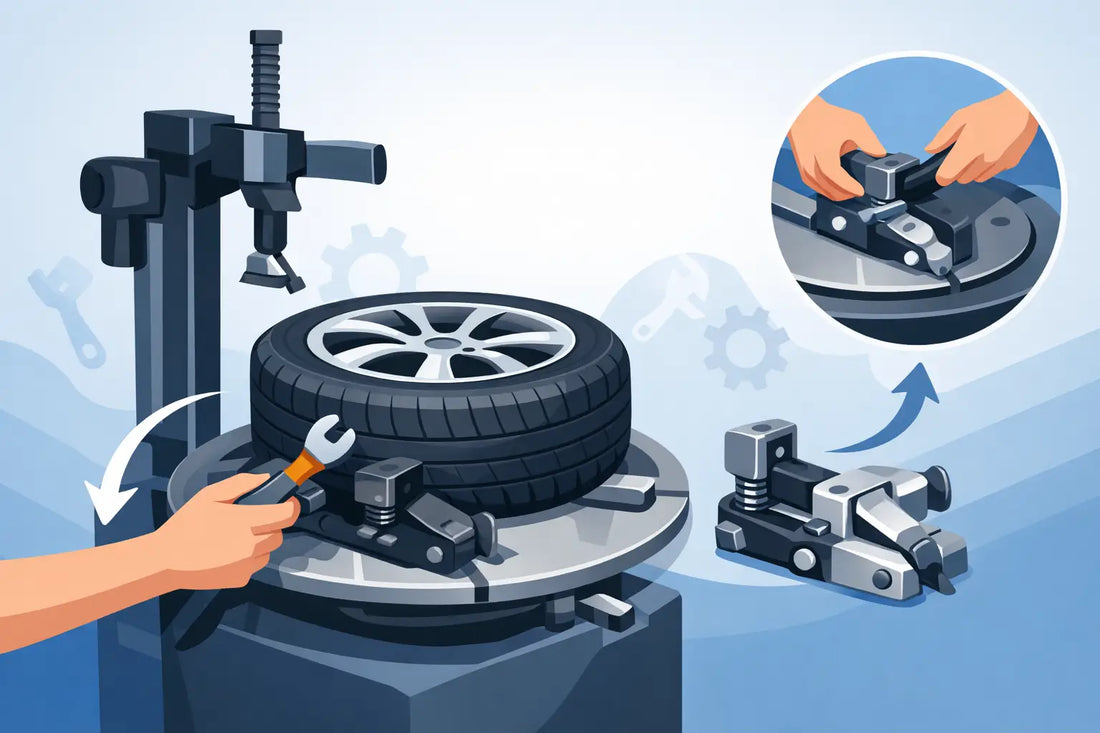

Tire Changer Clamp Assembly Replacement Steps

A tire changer that will not hold a wheel securely is not a machine to work around. When a clamp jaw sticks, slips, sits crooked, or will not travel with the other jaws, tire changer clamp assembly replacement may be the fastest way to put a critical piece of shop equipment back in service. The key is ordering the assembly that matches the machine, then correcting the cause of the failure instead of replacing parts blindly.

On a busy changer, the clamps see constant load, moisture, tire debris, wheel-weight residue, and occasional operator abuse. A worn jaw is one problem. A bent slide, leaking clamp cylinder, damaged linkage, or contaminated table can create the same symptoms. Start with a clear diagnosis before the machine is down on the floor with parts removed.

Know What the Clamp Assembly Includes

“Clamp assembly” does not mean the same thing on every tire changer. Depending on the make and model, the term may refer to a complete tabletop clamping jaw assembly, a jaw with its slide and mounting hardware, or a specific linkage piece that transfers movement from the clamp cylinder to the jaws. Coats and Corghi machines, in particular, use model-specific designs that can look similar while having different mounting dimensions, tooth profiles, travel, or connection points.

Before ordering, identify whether the failure is at the jaw itself, the slide under the tabletop, the clamp cylinder, or the actuating mechanism. If one jaw will not move but the others do, inspect that jaw’s slide and linkage first. If all jaws move weakly or only partway, the issue may be air supply, a foot-pedal valve, or a clamp cylinder rather than a failed clamp assembly.

A complete assembly can save labor when multiple related pieces are worn or damaged. Replacing only the jaw can be more cost-effective when the slide, pivot points, and mounting surfaces are still in good condition. It depends on the machine’s condition, the availability of individual components, and how much downtime the shop can absorb.

Get Tire Changer Clamp Assembly Replacement Fitment Right

Fitment is where most avoidable delays happen. Do not order from a photo alone, even if the part looks identical to the one on the table. Tire changer manufacturers made running changes over the life of many popular models, and replacement components can differ by serial-number range.

Have the tire changer’s make, model, and serial number available. Also note the location of the failed component - front, rear, left, or right where applicable - and whether the machine uses inside, outside, or combination clamping. Clear photos of the tabletop, the damaged assembly, and the underside mounting area are useful when the original part number is missing or unreadable.

Measure only as a backup, not as the primary identification method. Useful details include jaw width, bolt-hole spacing, slide dimensions, and the style of the engagement teeth. Those details help confirm a part, but an OEM number or verified equipment breakdown is still the better path.

For shops running older equipment, take a close look at everything around the failed assembly. A new clamp installed against a worn slide rail or distorted tabletop may not move freely. That can turn an apparent parts problem into a repeat repair a few weeks later.

Diagnose the Failure Before Removing Parts

A quick functional check can prevent the wrong repair. With the machine powered down and the air supply isolated, move the clamp components by hand where safe and practical. Look for obvious binding, side play, bent components, broken retainers, and packed debris in the slide path.

Then consider the symptom. A jaw that opens but will not close may indicate a restriction or leak on one side of the pneumatic circuit. A jaw that lifts or twists under load may have worn guide surfaces, loose fasteners, or a cracked assembly. A clamp that closes but cannot hold a wheel may have damaged teeth, a worn jaw face, low system pressure, or a cylinder that is bypassing internally.

Check the machine’s air pressure against the manufacturer’s requirement. Low shop air can make a healthy clamp system look defective. Water in the air system can also corrode valves and cylinders over time, especially on machines without effective filtration and drainage.

Do not keep mounting wheels while the clamps are questionable. A wheel that shifts during bead breaking or mounting can damage the rim, the duckhead, the table, and the operator’s confidence in the machine. It is cheaper to stop and repair the changer than to absorb a wheel claim or a larger mechanical failure.

A Practical Replacement Workflow

The exact procedure varies by tire changer, so use the equipment documentation for torque values, component orientation, and adjustment instructions. The general workflow is straightforward, but clean work and careful reassembly matter.

First, disconnect electrical power and shut off the air supply. Bleed stored air from the system before working around clamp cylinders, pedals, or moving tabletop components. The clamps can move unexpectedly when pressure is released or restored, so keep hands clear of pinch points.

Remove the wheel clamps or tabletop components necessary to access the failed assembly. As hardware comes off, keep washers, spacers, pins, and retainers organized by location. On older equipment, take photos before disassembly. This is especially useful when linkage orientation is not obvious after the assembly is removed.

Clean the table, slide channels, and mounting surfaces before installing the replacement. Remove rubber debris, dried lubricant, rust scale, and metal fragments. Do not use a heavy grease that attracts grit unless the equipment manufacturer specifically calls for it. The wrong lubricant can make the repair feel smooth on day one and cause binding later.

Install the new clamp assembly in the correct orientation, using sound hardware. Replace damaged pins, stripped fasteners, worn bushings, and questionable retainers while access is open. Reusing visibly worn hardware to save a few dollars is a poor trade when the table is already apart.

Before restoring air, cycle the mechanism by hand if the design allows it. Confirm that the assembly travels through its full range without interference. Then restore air gradually and operate the clamps several times with no wheel installed. Watch all jaws for even travel and listen for air leaks at fittings, hoses, and cylinder connections.

Finally, test with an appropriate wheel. Verify that the clamps center and hold the wheel securely in both inside and outside clamping positions used by your shop. If the machine uses adjustable jaws or linkage settings, make the final adjustment according to the manufacturer’s procedure rather than trying to compensate by feel.

Problems That Can Remain After Replacement

A new assembly does not automatically fix every clamp issue. If the jaws still move unevenly, look beyond the replacement part. The foot-pedal valve may be sticking, a control valve may be restricted, or one side of the air circuit may have a leak. If movement is smooth with no wheel but the clamp slips under load, inspect system pressure and the condition of the remaining jaws.

Tabletop wear is another common issue. A badly worn slide track can let a new clamp rock or bind. On some machines, replacing one damaged assembly beside three heavily worn assemblies produces uneven clamping and inconsistent wheel centering. When all components have similar wear, replacing related parts as a set may reduce callbacks and prevent another shutdown.

Do not overlook wheel-protection accessories. Plastic jaw covers and protective inserts reduce cosmetic damage on alloy wheels, but worn or loose covers can interfere with clamping. Use the correct covers for the jaw style and replace them when they no longer fit securely.

Keep the Next Clamp Repair From Becoming an Emergency

Clamp assemblies last longer when the tabletop is cleaned as part of normal tire changer maintenance. Blow out debris, inspect jaw teeth and slides, check for loose hardware, and drain the air system on the schedule appropriate for your shop’s compressor setup. A quick inspection during routine service is easier than diagnosing a failed machine with vehicles waiting.

Keep the model and serial number recorded where technicians and purchasing staff can find it. That small step makes urgent part identification much faster. For heavily used machines, it also makes sense to keep common wear items on hand, particularly jaw covers, fittings, valves, and components with a history of failure.

When fitment is unclear or the failure includes more than one moving component, an equipment specialist can help narrow down the correct repair before parts are ordered. Auto Equipment Direct supports tire-service operations with in-stock replacement components and practical help when equipment problems interrupt the day. The right clamp assembly, installed on a clean and properly functioning table, gets the changer back to doing its job: holding the wheel securely so your technicians can keep moving.
